L band Auto Tracking Satellite Antenna

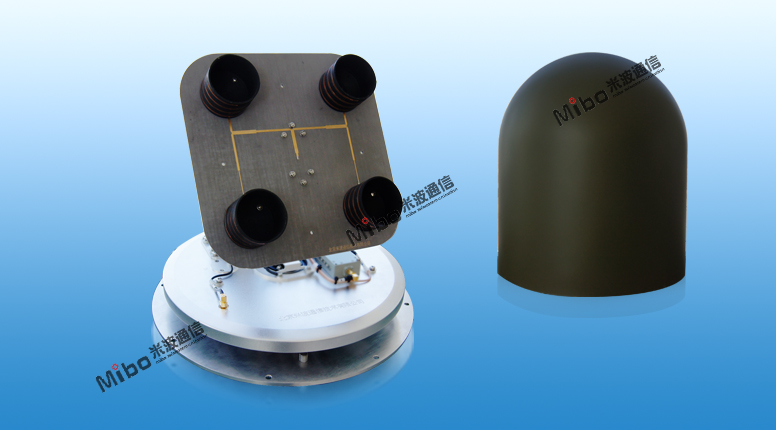

This antenna is a vehicle-mounted auto-tracking satellite antenna, which could be applicable to different types of L-band synchronous orbit satellite system. It is featured of auto-selection, auto-identification and auto-tracking satellites. Coordinating with the matched modem, the user is able to achieve satellite broadband traffic through the synchronous orbit satellite.

The main technical characteristics are:

The ingenious integrated design of antenna structure;

The high degree of automation and the flexibility of operation;

The strong capability of environmental adaptation and the reliability of operation.


Performance index

 Physical characteristic:

xmasUI-dreamdust.png Antenna surface dimension:253mm×253mm

xmasUI-dreamdust.png Boundary dimension: Height:400mm, Diameter:φ360mm

xmasUI-dreamdust.png Weight:8.2kg

xmasUI-dreamdust.png Antenna:2 axes

xmasUI-dreamdust.png Azimuth range: 360°

xmasUI-dreamdust.png Operation temperature:-40℃~55℃

Electrical Characteristics:

xmasUI-dreamdust.png Input voltage: DC 24V

xmasUI-dreamdust.png Power: nominal 25W

Signal Capture and Tracking Characteristics:

xmasUI-dreamdust.png Operation frequency range: 1.525GHz-1.559GHz

xmasUI-dreamdust.png Polarization: circle polarization

xmasUI-dreamdust.png Half power beam width: about 6°

xmasUI-dreamdust.png Tracking accuracy: azimuth ≤±4 °; pitch≤±2 °

xmasUI-dreamdust.png Capture time: ≤10s

xmasUI-dreamdust.png IF input: 55MHz-89MHz
