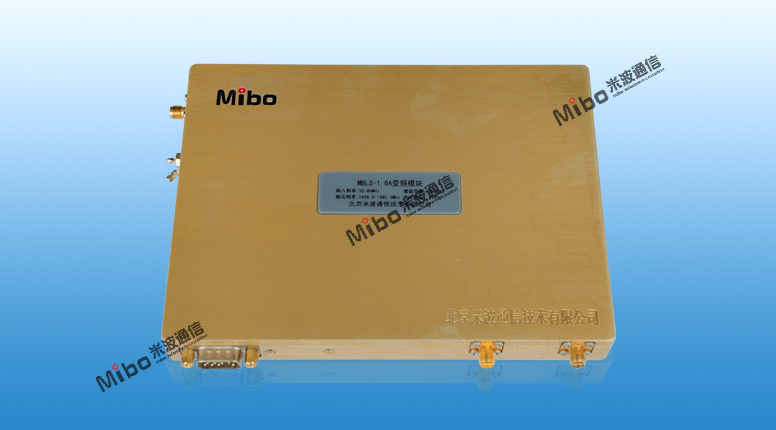

1.6G L-band Up Converter
This product with the functions of gain controlling and trouble indicating is mainly used to convert the IF signal to L-band signal. And it could be customized based on the requirement of the customer. As the proper operation stability, it is able to operate with in the environment temperature from -10℃ to 60℃.
Performance index
Input frequency range: 55MHz～89MHz
Output frequency range: 1626.5～1660.5MHz
Input Level: -60dBm～-30dBm
Gain: 0 ～ 30dB
Flatness: ± 1 dB
Gain control: 0.5dB stepping
Frequency deviation: ≤500Hz
Input/Output impedance: 50Ω
Power supply voltage: DC 28V
