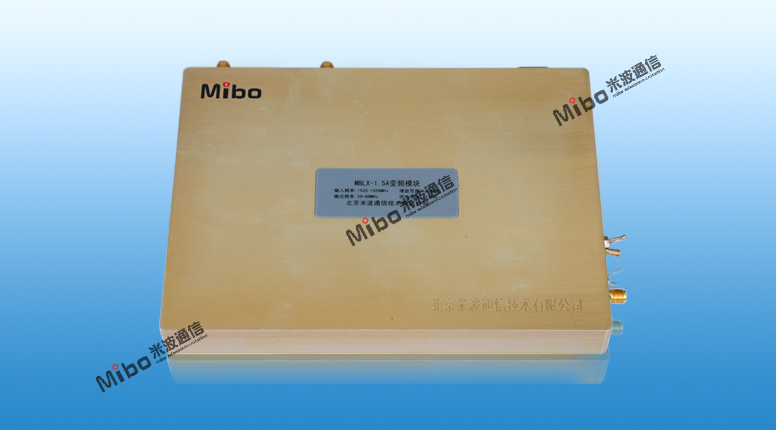

1.5G L-band Down Converter
This product with functions of gain controling and trouble indicating is mainly used to convert the L-band signal to IF signal. And it could be customized based on the requirement of the customer. As the proper operation stability, it is able to operate with in the environment temperature from -10 ℃ to 60 ℃.
Performance index
Input frequency range: 1525 to 1559MHz
Output frequency range: 55 to 89MHz
Input level range: -80dBm to -40dBm
Gain: 10 to 40dB
Flatness: ±1 dB
Gain control: 1dB stepping
Frequency deviation: ≤500Hz
Input/Output impedance: 50Ω
Power supply voltage: DC 28V
