The antenna is assorted with the operational command vehicle for the purpose of communication when moving. It could work coordinately with multiple HF transceivers within the frequency range from 3MHz to 30MHz and the transmission power below 150W/500W. Separate with other antennas with similar length, the variable pitch technique is adopted in the antenna and the efficient height is enriched, which strengthen the efficiency and the gain of the antenna.

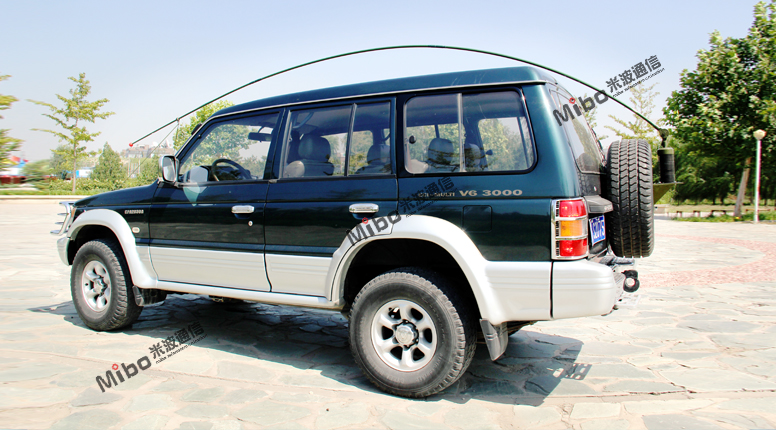

The excellent mechanical performance is contributed to the stainless steel connectors and the protection cover on the joints, which decrease the contact resistance and improve the resistance to corrosion and ageing, and enhance the safety. The distinct environmental adaption of the antenna makes the antenna could work in the severer environment. The antenna features of high elevation angel radiation when installed on the vehicle. It could operate in the NVIS mode to enlarge the scope of communication and overcome the affection of the dead zone. The antenna is also suited to be used for fixed stations and vessels.

 Operation frequency: 3～30MHz

 Power capacity: 150W/500W

 Gain: ≥2dB (Compare with similar height antennas with metal masts)

 Length: 5m ( 3 sections )

 Wind resistance: proper functioning at force 10 wind
