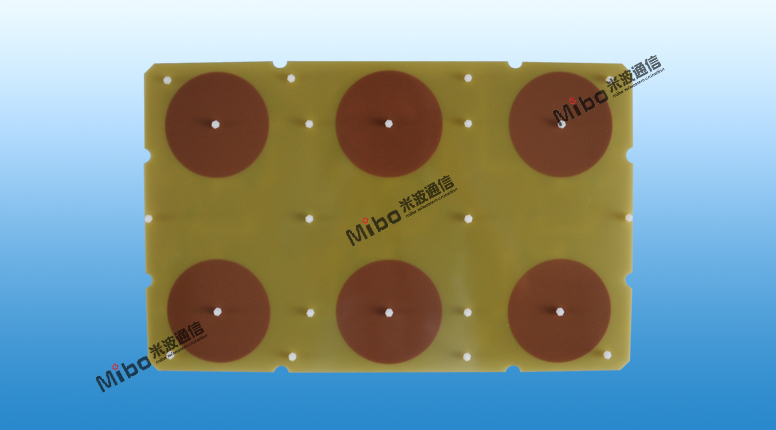

The B-711 6-element micro-strip antenna could be installed on the communication vehicle as the ODU (out door unit) and could be applied for fixed communication in the wild environment as well. The antenna connects to the receiver (transmitter) via the RF cable for receiving and transmission of L-band microwave signals. The antenna features stable and reliable structure, easy to use, simple to maintain, and enlarged frequency range, which could be applied for mobile communication under various types of severe environment and road conditions.

 Operation frequency: L-band

 Power capacity: 50W

 Gain: 12～13dB

 Width of main lobe: azimuth: 26°, elevation: 38°

 Polarization: right (left) circularly polarization

 Axial ratio: ≤3dB

 Input impedance: 50Ω

 Connector type: SMA socket

 Operation temperature: -40～55℃

 Antenna board dimension: 400mm×255mm×10mm

 Weight: ≤0.385kg (net weight)
