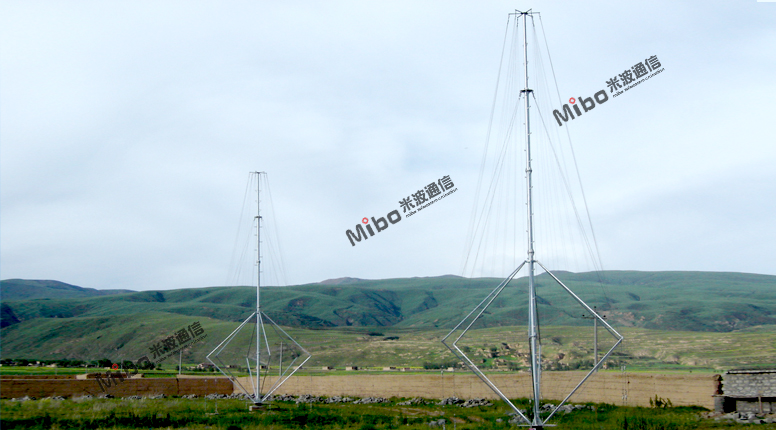

The MG-212D/E HF Vertical Rhombic Broadband Antenna could work compliant with various types of HF fixed communication stations and could work with different types of HF radios which frequency range within 3 to 30MHz and transmitting power below 2KW/5KW. The analog thick antenna technique is adopted, which makes the antenna excellent electrical performance, low elevation, high radiation efficiency, non-direction of horizontal plane, strong loading power and free of antenna tuning.

The antenna has become the premium choice to work with the omnidirectional medium/high power radio of fixed station for remote communication. The structure of the antenna is creative and reliable; the installation of the antenna is convenient, the occupied area of the antenna is small. In order to prevent the damage of the lightning, the arrester is installed in the cabin of the power feed. The unique structure design and the distinct environmental adaption make the antenna could work in the severe environment. The antenna features broadband, omnidirectional of horizontal plane and low operation elevation and it is a competitive cost performance product.

 Operation frequency: 3～30MHz

 Power capacity: 2KW（5KW）

 Rated impedance: 50Ω

 VSWR: 4～30MHz≤2.0

                 3～4MHz＜3.0

 Gain: 4dB

 Radiation direction: horizontal omnidirection

 Height: 15m

 Weight: 637kg

 Occupied area: 55㎡ on the roof, 39㎡ on the ground

 Wind resistance: proper functioning at force 10 wind
