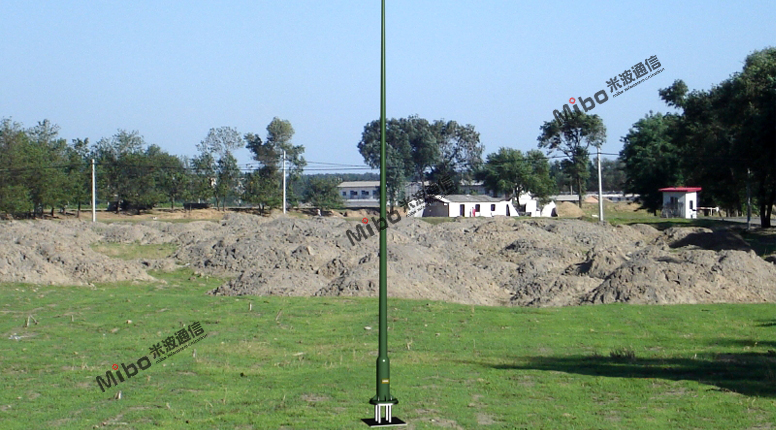

MG-210D HF 10m Whip Antenna

The MG-210D 10m HF whip antenna is mainly applied to fixed communication stations, and it could also be employed to the vessels, which could operate compliant with various types of radios with the frequency range between 3MHz to 30MHz and the transmission power at 2KW. The antenna adepts the internal unbalanced impedance transformer, which makes the antenna expanded band-width and gentle variation of impedance along with the frequency changes, and low VSWR of the whole frequency range. The electrical performance of the antenna is outstanding. The exterior supporting mast is made of fiber glass epoxy plastic; the elements of the antenna are all made of stainless steel and built-in structure. The distinct structure improves the resistance to corrosion and aging and the safety of the antenna. The antenna mast is designed as the self-support structure, which decrease the coverage of the area. The excellent adaption of the antenna makes the antenna could operate normally in the severe environment situation.

Performance index

xmasUI-dreamdust.png Operation frequency: 330MHz

xmasUI-dreamdust.png Power capacity: 2KW

xmasUI-dreamdust.png Rated impedance: 50Ω

xmasUI-dreamdust.png VSWR: ≤2.5

xmasUI-dreamdust.png Gain: ≥0dB

xmasUI-dreamdust.png Polarization: vertical polarization

xmasUI-dreamdust.png Horizontal radiation direction: omnidirection

xmasUI-dreamdust.png Length: 10m

xmasUI-dreamdust.png Weight: 60kg

xmasUI-dreamdust.png Wind resistance: force 11 wind
