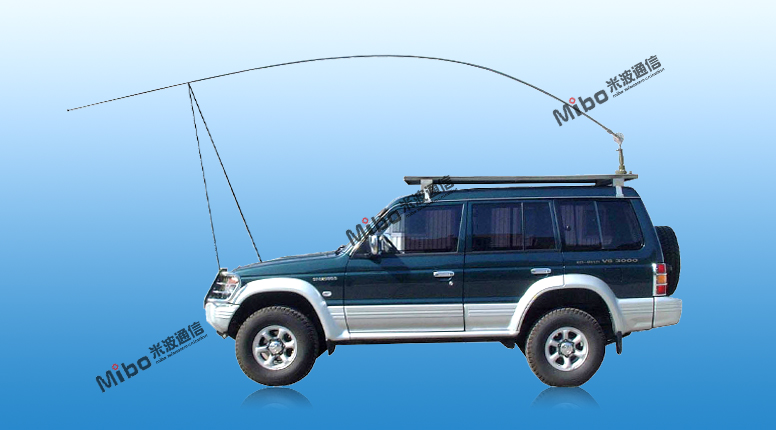

The MG-206 6m HF Vehicular 6m whip antenna could operate compliant with various type of Vehicular transceiver with the frequency range between 1.6 to 30MHz and transmission power lower than 125W for the purpose of command communication when moving. The variable pitch technique is employed, which enlarge the effective length of the antenna and enhance the gain of the antenna.

The flexible installation and NVIS transmission mode of the antenna could overcome the affection of the dead zone and mountainous regions and could fulfill the requirement of HF communication within 1000km. The antenna is the optimized choice for HF communication. The high strength fiber glass epoxy plastic outer sleeve, the stainless steel connectors and the insulation cover of the joint make the antenna improve the mechanical performance, the resistance to corrosion, the resistance to aging and the safety. The antenna comes with the reversing section, which makes the antenna could adjust the vertical direction from 45o to 135o to meet the requirement of different communication distance. According to the direction of the vehicle and the communication, the antenna could adjust to forward or backward direction.

 Rated power: 125W

 Nominal impedance: 50Ω

 Gain: 4dB （3～15MHz）

 Polarization: horizontal polarization (forward or backward direction operation)

 Insulation resistance: ≥500MΩ

 Length of antenna element: 6m（1.5m×4）

 Weight: 4.5kg

 Wind resistance: force 12 wind
