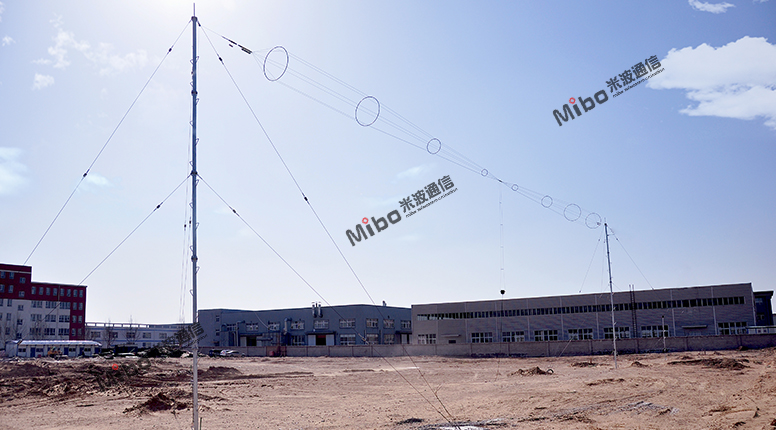

The MG-616 HF broadband cage antenna consists of antenna support mast, antenna element, network matcher and impedance transformer. The design of the antenna is based on the  end loading technique, which is featured of wide frequency bandwidth and free of tuning. Comparing with the regular branched cage antenna, this antenna has better bandwidth and gain. With the feature of higher cost performance, it is the priority selection and the upgrading product, which is suited to the application of fixed HF communication stations.

 Operation frequency range: 3MHz～30MHz

 Rated power: 2KW（CW）

 Polarization: horizontal polarization

 VSWR: ≤2.0 (＜2.5 at respective frequency point)

 Gain: 5dB

 Nominal impedance: 50Ω (unbalanced)

 Length of the antenna element: 34m

 Height of spanning: 12m (based on the communication distance)

 Environmental requirements: operation temperature: -45℃～55℃, operation humidity: ≤95%

 Wind resistance: force 10 wind

 Recommended distance between masts: 36m

 Occupied area: 46m×10m
