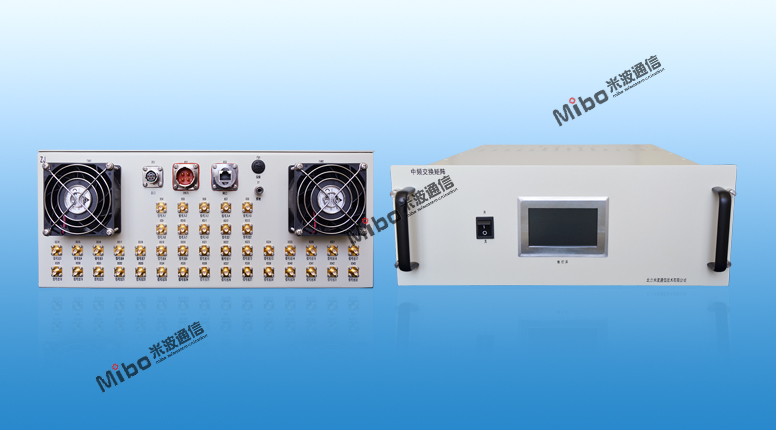

8×32 IF Switching Matrix


The 8×32 IF switching matrix is mainly applied to complete distribution and switching of 8 channels of IF input signal. It is able to be controlled through the touch screen or the upper computer, distribute the 8 channels of signal flexibly and switch the signal to 32 channels of input signal for the realization of completed switching from 8 channels of input signal to 32 channels of output signal. The product is featured of high isolation of input and output, user-friendly control and cost effectiveness, and it could be widely used in a variety of communication and radio monitoring system.

Product function

1. Completed switching

Be able to achieve completed switching from 8 channels of input signal to 32 channels of output signal.

2. Display

Be able to display the operation condition.

3. Control

Be able to switch from local control to remote control;

Be able to set the operation condition parameters through the touch screen;

Be able to set the operation condition parameters remotely via Ethernet;

Be able to set the parameters of Mac address, IP address and port number through the touch screen.

4. Self-checking

Be able to conduct self-checking on main modules.

Performance index

xmasUI-dreamdust.png Frequency Range: 50MHz~90MHz

xmasUI-dreamdust.png Input Level:-80dBm~0dBm

xmasUI-dreamdust.png Gain:5dB±1.5dB

xmasUI-dreamdust.png Input/output VSWR: ≤2

xmasUI-dreamdust.png Output/input isolation (same input): ≥15dB

xmasUI-dreamdust.png Output/output isolation (different input): ≥60dB

xmasUI-dreamdust.png Input/output isolation (different input) : ≥60dB

xmasUI-dreamdust.png Output/input isolation (reverse isolation): ≥25dB

xmasUI-dreamdust.png 1dB compression point output power: ≥10dBm
