The MG-015A(B/C/D) HF Vehicular inverted V shape broadband Antenna  is the corollary equipment of the operation and command vehicles on the purpose of communication when stopped and it is able to work with a variety of Vehicular and fixed transceivers with the operation frequency between 2 and 30MHz and the transmitting power of 150W/500W/1KW/2KW, which is the optimized selection for the purpose of omnidirection, no dead zone and free of tuning.

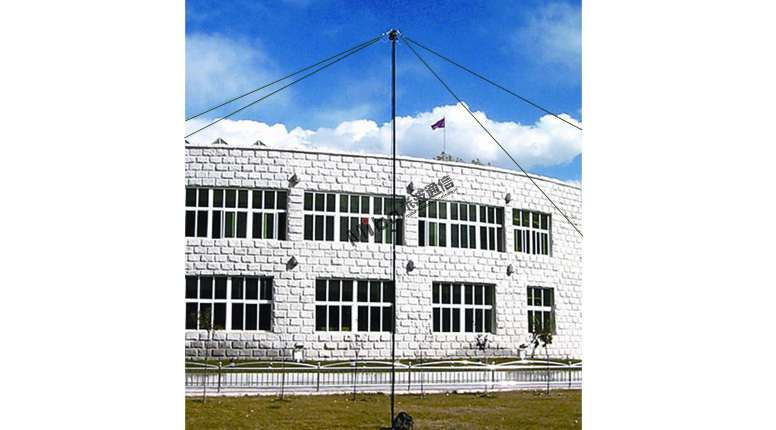

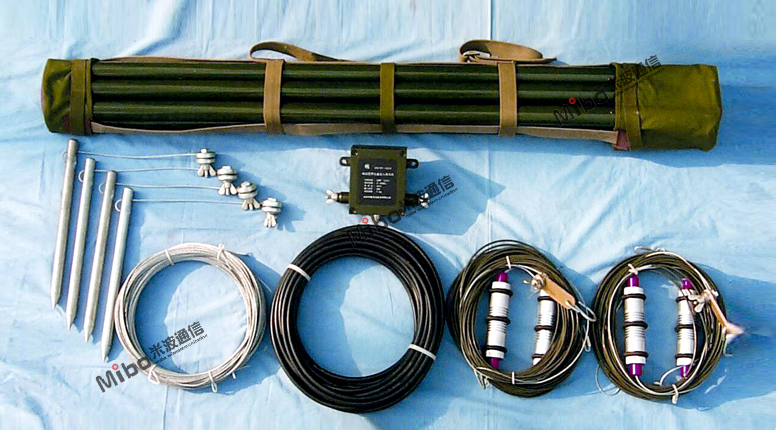

This antenna adopts the techniques of non-integer radio impedance conversion and end loading technique of the antenna element, which makes the operation frequency band expanded effectively and the antenna is omnidirectional, high efficiency and free of tuning. The structure of the antenna is creative and reliable and is convenient for carrying and deploying. The Vehicular antenna could be completely deployed within 8 minutes by 2 people，while the fixed antenna could be deployed on the ground or roof of buildings easily. With the excellent electrical and mechanical performance and the adaptability of environment, it is suited to operate on various types of environmental conditions. Especially, the outstanding features of the broadband and the mid-to-high elevation angle and rapid deployment and withdraw make the antenna becomes the priority selection Vehicular and fixed communication stations.

 Operation frequency: 2～30MHz

 Power capacity: 150W/500W/1KW/2KW

 VSWR: ≤2.0

 Gain: 5dB

 Polarization: horizontal + vertical polarization

 Height: 7.2m

 Occupied area: 29m×9m

 Wind resistance: proper functioning at force 8 wind
