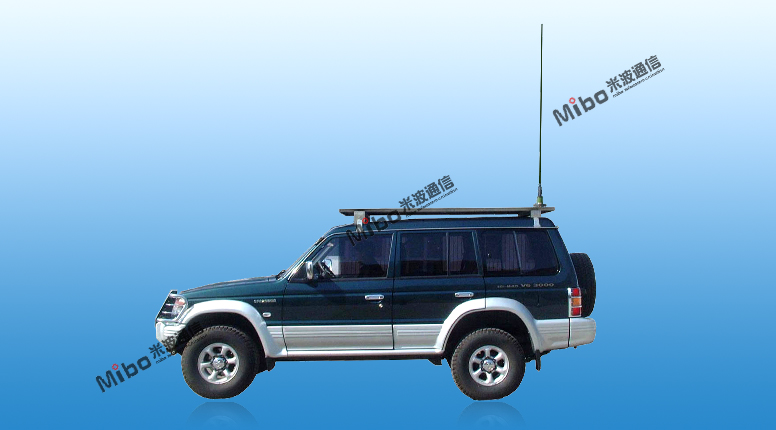

The MG-202 VHF 1.8m vehicular whip broadband antenna  could be installed on the operational command vehicle for the purpose of communication when moving. It could work compliant with multiple vehicular radios with the frequency range from 30MHz to 88 MHz and transmission power lower than 50W, which is an optimized choice of VHF vehicular antenna. Contributed to the impedance conversion device on the bottom of the antenna, the antenna features enhanced radiation capability, broad band-width and excellent electrical performance.

The distinct mechanical performance of the antenna is attributed to the high quality olivary spring section installed on the bottom in order to strengthen the flexibility, stability and lodging resistance when passing the barrier. When the antenna been installed on the roof of the vehicle, it could operate normally on any roads with different conditions. The distinct environmental adaption makes the antenna features best salt spray corrosion resistance and anti-mildew capability, and makes the antenna could operate in the severe environment. In order to prevent the antenna from lightening damages, the arrester is installed on the root of the antenna.

 Operation frequency: 30～88MHz

 Power capacity: 50W

 VSWR: ≤3.0

 Gain: 1～3dB

 Insulation resistance: ≥500MΩ

 Length: 1.8m

 Polarization: vertical polarization

 Horizontal radiation direction: horizontal omnidirection

 Wind resistance: force 10 wind
