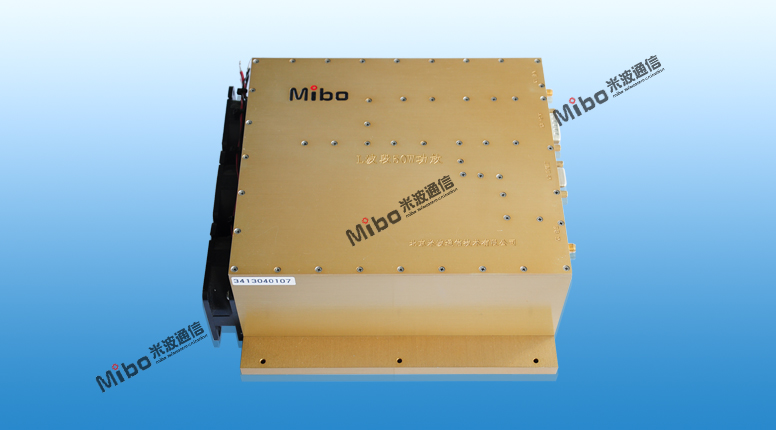

50W Power Amplifier

The product is applicable to power amplify of L-band, which is featured of good stability. And it could be customized according to the requirement of the client. It is able to work in the temperature range of -40 to 55.

Performance index

xmasUI-dreamdust.png Input frequency range: 1.5GHz1.6GHz

xmasUI-dreamdust.png Output frequency range: 1.5GHz~1.6GHz

xmasUI-dreamdust.png Input level range: 0dBm±1dBm

xmasUI-dreamdust.png Gain: 47dB±1dB

xmasUI-dreamdust.png Flatness: ≤1dB

xmasUI-dreamdust.png Maximum output power:≥50W

xmasUI-dreamdust.png Third order intermodulation: ≤-25dBc (Output power 50W)

xmasUI-dreamdust.png Input/output impedance: 50Ω

xmasUI-dreamdust.png Output VSWR: ≤1.5

xmasUI-dreamdust.png Power supply voltage: DC 27V
